Spigot Saddle



Contact Vinidex Customer Service for availability of products on this page.

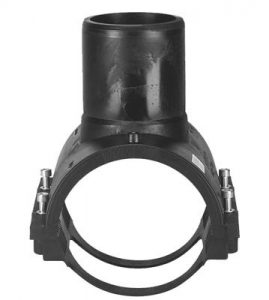

With Underclamp SDR 11 PE 100

Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
88848 63 x 32 11 16 10 612757 SA
88850 63 x 50 11 16 10 612759 SA
88854 75 x 50 11 16 10 615020 SA
88856 90 x 32 11 16 10 615285 SA
88859 90 x 63 11 16 10 612819 SA
88861 110 x 32 11 16 10 615334 SA
88863 110 x 50 11 16 10 615031 SA
88864 110 x 63 11 16 10 612760 SA
88865 110 x 90 11 16 10 615411 SA
88866 125 x 32 11 16 10 615087 SA
88869 125 x 63 11 16 10 612761 SA
88870 125 x 90 11 16 10 615412 SA
88876 160 x 32 11 16 10 612886 SA
88879 160 x 63 11 16 10 612762 SA
88880 160 x 90 11 16 10 615413 SA
89265 160 x 110 11 16 10 615739 SA
89266 160 x 125 11 16 10 615585 SA
88884 180 x 63 11 16 10 612763 SA
88885 180 x 90 11 16 10 615414 SA
88886 180 x 110 11 16 10 615948 SA
88887 180 x 125 11 16 10 615740 SA
88888 200 x 63 11 16 10 612764 SA
88890 225 x 63 11 16 10 612765 SA
88891 225 x 90 11 16 10 615415 SA
88892 225 x 110 11 16 10 616044 SA
88893 225 x 125 11 16 10 616045 SA
88894 225 x 160 11 16 10 616046 SA

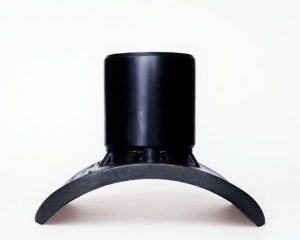

Top Loading SDR 11 PE 100

Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
88899 250-560 x 32 11 16 10 615465 SA-TL
88900 250-560 x 63 11 16 10 615466 SA-TL
88898 250-560 x 90 11 16 10
