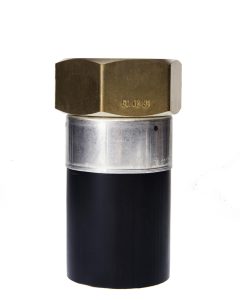

Female Brass Adaptor Insert Long Spigot SDR 11 PE 100



Contact Vinidex Customer Service for availability of products on this page.

Vinidex Code Nominal Size (mm x inch) SDR PN Water PN Gas Friatec Code Frialen Model Code
61713 20 x ½ 11 16 10
61714 25 x ¾ 11 16 10
88718 32 x 1 11 16 10 616156 UAM
61718 40 x 1 11 16 10 UAM
88719 40 x 1¼ 11 16 10 616157 UAM
61720 40 x 1 1/2 11 16 10 UAM
88720 50 x 1½ 11 16 10 616158 UAM
61723 63 x 1 1/2 11 16 10 UAM
88721 63 x 2 11 16 10 616159 UAM
88671 75 x 2 1/2 11 16 10 616665 UAM
88672 90 x 3 11 16 10 616623 UAM
88673 110 x 4 11 16 10 616624 UAM
88674 125 x 4 11 16 10 616666 UAM
