Repair Saddle



Contact Vinidex Customer Service for availability of products on this page.

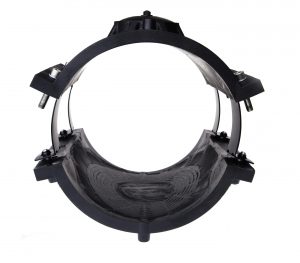

With Underclamp

Vinidex Code Nominal Size (mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
89028 63 11 16 10 612519 RS
89030 90 11 16 10 615164 VVS
89031 110 11 16 10 615165 VVS
89032 125 11 16 10 615166 VVS
89034 160 11 16 10 615168 VVS
89035 180 11 16 10 615169 VVS
89036 200 11 16 10 615170 VVS
89037 225 11 16 10 615171 VVS

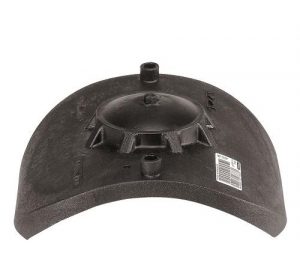

Top Loading SDR 11 PE 100

Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
89275 250 x 560 11 16 10 615397 VSC-TL
