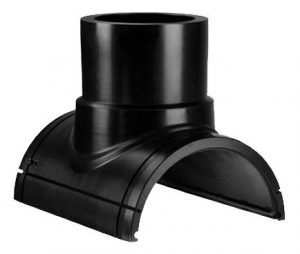

Spigot Saddle Vacuum



Contact Vinidex Customer Service for availability of products on this page.



Vacuum SDR 11 PE 100

Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
89368 315 x 225 (*160) 11 16 10 616387 SA-XL
89369 315 x 250 11 16 10 616398 SA-XL
88901 355 x 225 (*160) 11 16 10 616388 SA-XL
89370 355 x 250 11 16 10 616399 SA-XL
88903 450 x 225 (*160) 11 16 10 616390 SA-XL
88904 450 x 250 11 16 10 616401 SA-XL
88905 500 x 160 11 16 10 616381 SA-XL

Vacuum SDR 17 PE 100

Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
89371 500 x 225 17 16 5 616391 SA-XL
89325 560 x 160 17 16 5 616373 SA-XL
89326 560 x 225 17 16 5 616392 SA-XL
89327 630 x 160 17 16 5 616374 SA-XL
89328 630 x 225 17 16 5 616393 SA-XL
89329 710 x 160 17 16 5 616375 SA-XL
89330 710 x 225 17 16 5 616394 SA-XL
89372 800 x 160 17 16 5 616376 SA-XL
89373 800 x 225 17 16 5 616395 SA-XL
88902 900 x 160 17 16 5 616377 SA-XL
89374 900 x 225 17 16 5 616396 SA-XL
89375 1000 x 160 17 16 5 616378 SA-XL
89376 1000 x 225 17 16 5 616397 SA-XL
89331 1200 x 160 17 16 5 616383 SA-XL
89377 1200 x 225 17 16 5 616384 SA-XL
