Coupler



Contact Vinidex Customer Service for availability of products on this page.

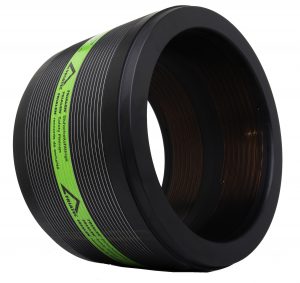

SDR 11 PE 100

Vinidex Code Nominal Size (mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
88400 *16 11 16 10 MB
88401 20 11 16 10 612680 MB
88402 25 11 16 10 612681 MB
88403 32 11 16 10 612682 MB
88404 40 11 16 10 612683 MB
88405 50 11 16 10 612684 MB
88406 63 11 16 10 612685 MB
88407 75 11 16 10 612686 MB
88408 90 11 16 10 612687 MB
88409 #110 11 16 10 612688 MB
88410 125 11 16 10 612689 MB
88411 140 11 16 10 612690 MB
88412 #160 11 16 10 612691 MB
88413 180 11 16 10 612672 UB
88414 200 11 16 10 612673 UB
88415 225 11 16 10 612674 UB
88416 250 11 16 10 612675 UB
88417 280 11 16 10 615073 UB
88418 315 11 16 10 612670 UB
88419 355 11 16 10 615074 UB
88420 ^400 11 16 10 615075 UB
88421 ^450 11 16 10 615076 UB
88422 ^500 11 16 10 615124 UB
88423 ^560 11 16 10 616312 UB
88424 ^630 11 16 10 616269 UB
88425 ^710 11 16 10 616313 UB
88426 ^800 11 16 10 616314 UB
88427 ^900 11 16 10 616440 UB
*4.7mm adaptors required
^With preheating technology
#Also suitable for SDR 21

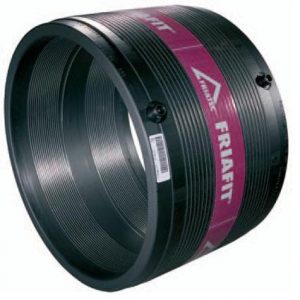

SDR 17 PE 100






























                    Vinidex Code
                    Nominal Size (mm)
                    SDR
                    PN Water
                    PN Gas
                    Friatec Code
                    Frialen Model Code





                              88451
                              110
                              17
                              10
                              5
                              680001
                              AM




                              88452
                              125
                              17
                              10
                              5
                              680013
                              AM




                              88453
                              140
                              17
                              10
                              5
                              615001
                              AM




                              88454
                              160
                              17
                              10
                              5
                              680002
                              AM




                              88455
                              180
                              17
                              10
                              5
                              680003
                              AM




                              88456
                              200
                              17
                              10
                              5
                              680004
                              AM




                              88457
                              225
                              17
                              10
                              5
                              680005
                              AM




                              88458
                              250
                              17
                              10
                              5
                              680006
                              AM




                              88459
                              280
                              17
                              10
                              5
                              680007
                              AM




                              88460
                              315
                              17
                              10
                              5
                              680008
                              AM




                              88461
                              355
                              17
                              10
                              5
                              680009
                              AM




                              88462
                              400
                              17
                              10
                              5
                              680010
                              AM




                              88463
                              450
                              17
                              10
                              5
                              680011
                              AM




                              88464
                              500
                              17
                              10
                              5
                              680012
                              AM




                              88465
                              ^560
                              17
                              10
                              5
                              615706
                              UB




                              88466
                              ^630
                              17
                              10
                              5
                              615726
                              UB




                              88467
                              ^710
                              17
                              10
                              5
                              615994
                              UB




                              88468
                              ^800
                              17
                              10
                              5
                              616290
                              UB




                              88469
                              ^900
                              17
                              10
                              5
                              616345
                              UB




                              88470
                              ^1000
                              17
                              10
                              5
                              616403
                              UB




                              88471
                              ^1200
                              17
                              10
                              5
                              616416
                              UB




                              ^With preheating technology










                              d1000mm and above can only be fused with FRIAMAT XL
