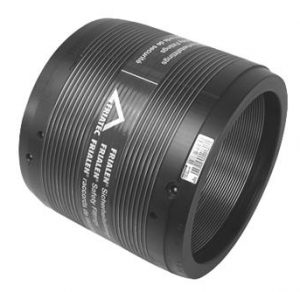

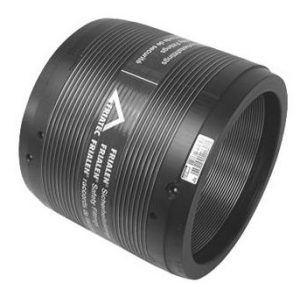

Slide Over Coupler
SDR 9 PE 100
| Vinidex Code | Nominal Size (mm) | SDR | PN Water | Friatec Code | Frialen Model Code |
| 89285 | 400 | 9 | 20 | 616441 | UB |
| 89286 | 450 | 9 | 20 | 616447 | UB |
| 89287 | 500 | 9 | 20 | 616445 | UB |
| 89288 | 560 | 9 | 20 | 616446 | UB |
| 89289 | 630 | 9 | 20 | 616439 | UB |
SDR 7.4 PE 100
| Vinidex Code | Nominal Size (mm) | SDR | PN Water | Friatec Code | Frialen Model Code |
| 88401 | 20 | 7.4 | 25 | 612680 | MB |
| 88402 | 25 | 7.4 | 25 | 612681 | MB |
| 88403 | 32 | 7.4 | 25 | 612682 | MB |
| 88404 | 40 | 7.4 | 25 | 612683 | MB |
| 88405 | 50 | 7.4 | 25 | 612684 | MB |
| 88406 | 63 | 7.4 | 25 | 612685 | MB |
| 88407 | 75 | 7.4 | 25 | 612686 | MB |
| 88431 | 90 | 7.4 | 25 | 616270 | UB |
| 88432 | 110 | 7.4 | 25 | 616271 | UB |
| 88433 | 125 | 7.4 | 25 | 616272 | UB |
| 89270 | 140 | 7.4 | 25 | UB | |
| 89271 | 160 | 7.4 | 25 | UB | |
| 88434 | 180 | 7.4 | 25 | 616282 | UB |
| 88435 | 200 | 7.4 | 25 | 616283 | UB |
| 88436 | 225 | 7.4 | 25 | 616284 | UB |
| 88437 | 250 | 7.4 | 25 | 616285 | UB |
| 88438 | 280 | 7.4 | 25 | 616286 | UB |
| 88439 | 315 | 7.4 | 25 | 616287 | UB |
| 88440 | 355 | 7.4 | 25 | 616288 | UB |
