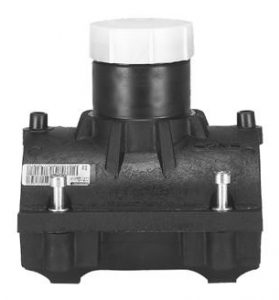

Shut Off Saddle



Contact Vinidex Customer Service for availability of products on this page.



SDR 11 PE 100

Vinidex Code Nominal Size (mm x inch) SDR PN Water PN Gas Friatec Code Frialen Model Code
89332 63 x 1½ 11 16 10 612753 SPA
88909 90 x 2½ 11 16 10 612667 SPA
88910 110 x 2½ 11 16 10 612750 SPA
88911 125 x 2½ 11 16 10 612751 SPA
88912 160 x 2½ 11 16 10 612752 SPA
88913 180 x 2½ 11 16 10 612754 SPA
88914 200 x 2½ 11 16 10 612755 SPA
88915 225 x 2½ 11 16 10 612756 SPA

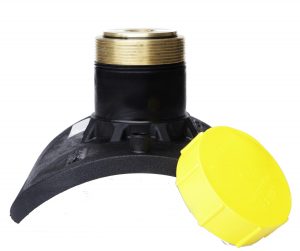

Top Loading SDR 11 PE 100

Vinidex Code Nominal Size (mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
89267 250-315 (560) 11 16 10 615395 SPA-TL
