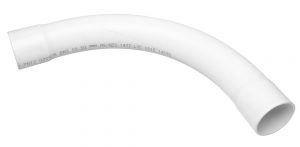

CAT 12 Bends (Fabricated)



Contact Vinidex Customer Service for availability of products on this page.

CAT 12 bends are manufactured to AS/NZS 1477

Bends are used in pipelines to allow changes in direction. They are most often used in situations where space is not a problem, e.g. when laid in a large trench. They have significantly better flow characteristics compared to moulded elbows.

Vinidex Code Size DN (mm x degree) Class A Bore (Nom) L (min) Radius (Nom)
38860 20×90° 18 352 22.4 38 305
38870 25×90° 18 352 28.1 38 305
38880 32×90° 18 371 35.4 38 305
38890 40×90° 18 371 40.5 51 305
38900 50×90° 12 383 53.7 64 305
38920 65×90° 12 479 67.5 64 365
38950 80×90° 12 477 79 76 356
38970 100×90° 12 628 101.7 102 457
38990 125×90° 12 1085 124.9 127 635
39000 150×90° 12 1085 142.7 127 635
39047 200×90° 12 1730 206.6 152 1200
38740 80×60° 12 400 79 76 356
38750 100×60° 12 502 101.7 102 584
38770 150×60° 12 885 142.7 127 635
38480 20×45° 18 172 22.4 38 305
38490 25×45° 18 172 28.1 38 305
38500 32×45° 18 172 35.4 38 305
38510 40×45° 18 185 40.5 51 305
38520 50×45° 12 210 53.7 64 305
38540 65×45° 12 243 67.5 64 365
38550 80×45° 12 343 79 76 584
38560 100×45° 12 358 101.7 102 584
38570 125×45° 12 776 124.9 127 635
38580 150×45° 12 776 142.7 127 635
38620 200×45° 12 1000 204.6 254 1200
38330 50×30° 12 154 53.7 64 305
38350 80×30° 12 239 79 76 584
38360 100×30° 12 279 101.7 102 584
38370 125×30° 12 588 124.9 127 635
38380 150×30° 12 652 142.7 127 635
38120 32×22½° 18 103 35.4 38 305
38130 40×22½° 18 115 40.5 51 305
38140 50×22½° 12 128 53.7 64 305
38160 80×22½° 12 199 79 76 584
38170 100×22½° 12 247 101.7 102 584
38180 125×22½° 12 548 124.9 127 635
38190 150×22½° 12 599 142.7 127 635
38215 200×22½° 18 76 22.4 38 305
37950 50×11¼° 12 102 53.7 64 305
37980 80×11¼° 12 140 79 76 584
37990 100×11¼° 12 170 101.7 102 584
38000 125×11¼° 12 508 124.9 127 635
38010 150×11¼° 12 572 142.7 127 635
38025 200×11¼° 12 730 206.6 178 1800
