Tees provide a branch at 90° from a main line. Available in equal or reducing branches. See also tapping saddles.

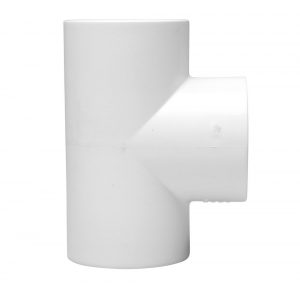

CAT 19 Tees
| Vinidex Code | Size DN (mm x mm) | C | C1 | L | L1 |
| 35980 | 15×15 | 15.5 | 15.5 | 43.2 | 43 |
| 35990 | 20×15 | 20.4 | 15.5 | 42.9 | 42.7 |
| 36000 | 20×20 | 20.4 | 20.4 | 42.9 | 42.7 |
| 36010 | 25×15 | 26.7 | 15.6 | 46.2 | 46 |
| 36020 | 25×20 | 26.7 | 20.7 | 46.2 | 45.8 |
| 36030 | 25×25 | 26.7 | 26.7 | 46.2 | 46.1 |
| 36040 | 32×15 | 33.4 | 17 | 52.9 | 44.7 |
| 36050 | 32×20 | 41.5 | 20 | 48 | 45.8 |
| 36060 | 32×25 | 41.5 | 25 | 48 | 45.8 |
| 36070 | 32×32 | 41.5 | 41.5 | 52 | 52 |
| 36080 | 40×15 | 38.6 | 16.8 | 58.9 | 49.5 |
| 36090 | 40×20 | 47.5 | 20 | 50.9 | 49 |
| 36100 | 40×25 | 47.5 | 25 | 50.9 | 49 |
| 36110 | 40×32 | 38.6 | 33.5 | 58.9 | 59 |
| 36120 | 40×40 | 47.5 | 47.5 | 58 | 58 |
| 36130 | 50×15 | 48.3 | 16.8 | 74.2 | 54.4 |
| 36140 | 50×20 | 59.5 | 20 | 57 | 55.1 |
| 36150 | 50×25 | 59.5 | 25 | 57 | 55.1 |
| 36160 | 50×32 | 48.3 | 33.7 | 74.2 | 69.4 |
| 36170 | 50×40 | 48.3 | 39.3 | 74.2 | 72.5 |
| 36180 | 50×50 | 59.5 | 59.5 | 70 | 70 |
| 36200^ | 65×65 | 74.8 | 74.8 | 92.25 | 92 |
| 36210 | 80×25 | 78.5 | 29.8 | 98.2 | 79.6 |
| 36220 | 80×32 | 78.5 | 38.7 | 98.2 | 83 |
| 36230 | 80×40 | 78.5 | 38.8 | 98.2 | 86.6 |
| 36240 | 80×50 | 78.5 | 54 | 98.2 | 89.5 |
| 36250 | 80×80 | 78.5 | 78.5 | 98.2 | 98.6 |
| 36260 | 100×25 | 106 | 27 | 95 | 100.5 |
| 36270 | 100×50 | 106 | 55 | 95 | 100.5 |
| 36280 | 100×80 | 106 | 87 | 111 | 127 |
| 36290 | 100×100 | 107.3 | 107.3 | 131 | 129 |
| 36330^ | 150×100 | 143 | 101.5 | 158 | 153 |
| 36340^ | 150×150 | 143 | 143 | 172 | 172 |
| 30393* | 200×200 | 220 | 220 | 233 | 233 |
| ^PN12 Fitting (°) Fabricated from other moulded fittings | |||||
| *Not to AS 1477 PN 18 |
