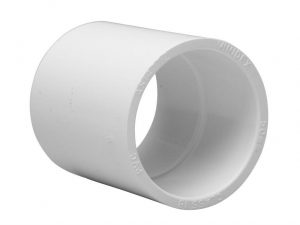

CAT 7 Couplings



Contact Vinidex Customer Service for availability of products on this page.
Vinidex Code Size DN (mm) C L
34730 15 18.4 39
34740 20 24.1 43.5
34750 25 30.2 49 0
34760 32 36.6 69.5
34770 40 45.4 65.5
34780 50 56.6 77
34790 65 66 110.5
34800 80 85.5 104.5
34810 100 110 124.5
34820 125 131.5 185
34830 150 149.5 190
30404* 200 215 238
*PN10 Fitting
