Contact Vinidex Customer Service for availability of products on this page.

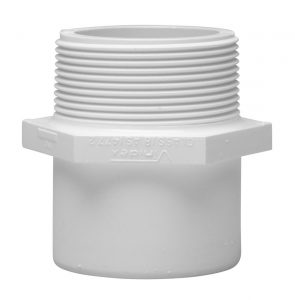

CAT 2 Valve Take Off Adaptors
| Vinidex Code | Size DN (SP x TH) | C | S | H | L |
| 33890 | 15×15 | 15.4 | 18 | 7 | 51.4 |
| 33900 | 20×15 | 15.4 | 18 | 7 | 51.4 |
| 33910 | 20×20 | 20.1 | 19.5 | 7 | 52.9 |
| 33920 | 25×15 | 15.4 | 16.9 | 6.7 | 51.2 |
| 33930 | 25×20 | 20.1 | 19.5 | 6.8 | 53.9 |
| 33940 | 25×25 | 25.2 | 39.2 | 7.8 | 57.5 |
| 33950 | 32×15 | 15.4 | 16.9 | 6.7 | 56.4 |
| 33970 | 32×25 | 25.2 | 22.1 | 7 | 61.9 |
| 33980 | 32×32 | 32.5 | 25.5 | 8 | 66.3 |
| 34000 | 40×20 | 20.1 | 19.5 | 6.8 | 62.2 |
| 34010 | 40×25 | 25.2 | 22.1 | 7.8 | 65.8 |
| 34020 | 40×32 | 32.5 | 25.5 | 8 | 69.4 |
| 34030 | 40×40 | 41 | 24.4 | 9 | 69.3 |
| 34060 | 50×25 | 25.2 | 22.1 | 7.8 | 69 |
| 34070 | 50×32 | 32.5 | 24.4 | 7.8 | 71.3 |
| 34080 | 50×40 | 37.6 | 24.6 | 8.8 | 72.5 |
| 34090 | 50×50 | 51.1 | 29 | 8.6 | 76.7 |
| 34100* | 80×50 | 50 | 29 | 8.6 | 88 |
| 34110* | 80×80 | 69.7 | 34 | 19.5 | 158.5 |
| 34130* | 100×80 | 69.7 | 34 | 19.5 | 158.5 |
| 34140* | 100×100 | 90 | 40.5 | 20 | 184.5 |
