CAT 23 Threaded Plugs



Contact Vinidex Customer Service for availability of products on this page.

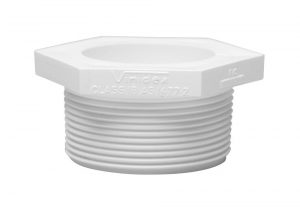

Threaded plugs are used as blank-offs for female threaded fittings.

Vinidex Code Size DN (mm) C F L S
36620 15 14.6 27 25 18
36630 20 17.8 32 26 19.1
36640 25 24.1 39.6 30 22.2
36650 32 31.8 50 32.4 24.4
36660 40 35.5 55.5 37.2 28.5
36670 50 45.5 70 37.7 28.5
36680 80 70 105 53.5 33.5
36690 100 Solid 134 68.5 43
