CAT 18 Faucet Sockets



Contact Vinidex Customer Service for availability of products on this page.

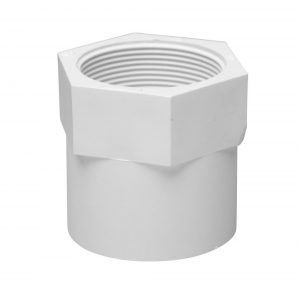

The faucet socket is solvent cement jointed to a pipe spigot. The female-threaded end of the faucet socket provides a connection for a faucet tap fitting or a spray nozzle.

Vinidex Code Size DN (mm) C L S
35870 15 17 47 15.7
35880 20 22 50.2 18.5
35890 25 28.2 56.2 21.5
35900 25x15 17 50 15.7
35910 32 34.3 62.6 26.3
35920 40 39.2 69 29.2
35930 50 49.3 72.3 29.2
35950 80 82.8 95 35
35960 100 107.5 112.5 41.5
