CAT 22 Unions



Contact Vinidex Customer Service for availability of products on this page.

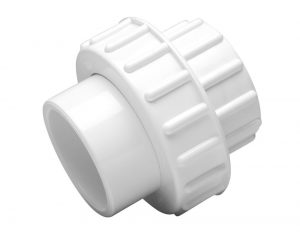

Unions are used to join together two sections of PVC pipe. In industrial applications they are used as an alternative to a flange in situations where future inspection of lines is anticipated. Easily assembled and disassembled, they can be used in pipeline repair situations.

Vinidex Code Size DN (mm) C T (Assembled) H L
36560 20 21.6 63 18.2 68
36570 25 27 70.2 18.1 75
36580 32 33.8 82.6 18.5 81.5
36590 40 40 96.5 22 91.5
36600 50 48.8 111.1 22.2 97.5
