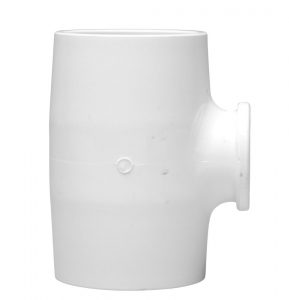

CAT 21 Faucet Tees



Contact Vinidex Customer Service for availability of products on this page.

Faucet tees are used mainly in irrigation pipelines. The female thread in the tee branch provides a connection for a threaded riser pipe.

Vinidex Code Size DN (mm) C C1 L L1 S
36390 15x15 15.5 15.5 43.2 43 17.1
36400 20x15 20.5 15.5 43 42.4 17.1
36410 20x20 20.5 20.5 43 42.4 20
36420 25x15 26.8 15.5 46.2 46.2 17.3
36430 25x20 26.8 20.5 46.2 46.2 19.7
36440 25x25 26.8 26.7 46.2 46.2 23.6
36460 32x20 41.7 20 48 45.8 19.7
36470 32x25 41.7 26 48 45.8 22.8
36490 40x20 47.7 20 50.9 49 19.7
36500 40x25 47.7 26 50.9 49 22.8
36520 50x20 59.7 20 57 55.1 19.7
36530 50x25 59.7 26 57 55.1 22.8
