Transition Coupling



Contact Vinidex Customer Service for availability of products on this page.

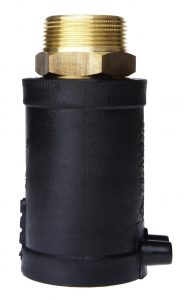

Male Brass BSP Outlet SDR 11 PE 100



Vinidex Code Nominal Size (mm x inch) SDR PN Water Friatec Code Frialen Model Code
88792 20 x ½ 11 16 612710 MUN
88793 25 x ¾ 11 16 612711 MUN
88797 32 x 1¼ 11 16 612709 MUN
88798 32 x 1½ 11 16 612698 MUN
88801 40 x 1½ 11 16 612718 MUN
88803 50 x 1 11 16 612719 MUN
88810 75 x 2 11 16 612694 MUN
88811 75 x 2½ 11 16 612695 MUN

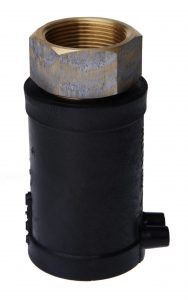

Female Gunmetal BSP Outlet SDR 11 PE 100

Vinidex Code Nominal Size (mm x inch) SDR PN Water Friatec Code Frialen Model Code
88828 *32 x 1 11 16 612595 MUM
88830 40 x 1¼ 11 16 612596 MUM
88832 50 x 1½ 11 16 612692 MUM
88834 63 x 1½ 11 16 612708 MUM
88835 63 x 2 11 16 612693 MUM
*4.7mm adaptors required

Transition Coupling – Polyethylene to Steel SDR 11 PE 100



Vinidex Code Nominal Size (mm) SDR PN Gas Friatec Code Frialen Model Code
88675 20 x 15 11 10 616632 USTRS
88676 25 x 20 616633 USTRS
89115 32mm x 1 inch 11 10 612780 USTRS
89116 40mm x 1¼ inch 11 10 612781 USTRS
89117 50mm x 1½ inch 11 10 612782 USTRS
89118 63mm x 2 inch 11 10 612783 USTRS
88677 75 x 65 11 10 616638 USTRS
89119 90mm x 3 inch 11 10 612784 USTR
89120 110mm x 4 inch 11 10 USTR
89121 125mm x 4 inch 11 10 USTR
88678 140 x 125 11 10 616642 USTRS
89122 160mm x 6 inch 11 10 612787 USTR
88679 200 11 10 616645 USTRS
88680 225 x 200 11 10 616646 USTRS
88681 250 11 10 616647 USTRS
88682 280 x 250 11 10 616648 USTRS
88683 315 x 300 11 10 616649 USTRS
88684 355 x 300 11 10 616650 USTRS
88685 400 11 10 616651 USTRS
88686 500 11 10 616652 USTRS
88687 630 x 600 11 10 616653 USTRS
