CAT 13 90° Elbows



Contact Vinidex Customer Service for availability of products on this page.

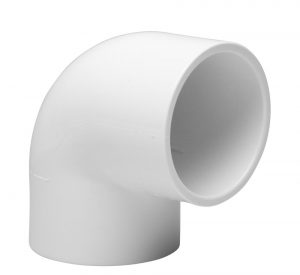

These are moulded fittings, which are used to provide 90° bends in pipelines. They are most often employed in confined space situations in preference to CAT 12 90° bends.

Vinidex Code Size DN (mm) C L
35330 15 15.5 43.3
35340 20 20.6 43
35360 25 26.8 46.3
35390 32 39.7 52
35400 40 45.7 57.7
35410 50 57.7 69.9
35420 65 74.8 87.4
35430 80 78.4 98.6
35440 100 101.5 137.3
35460 150 143 182.9
30381 200 217 241
