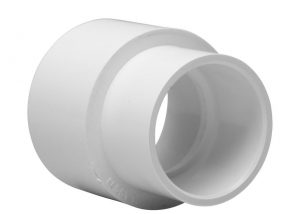

CAT 8 Reducing Couplings



Contact Vinidex Customer Service for availability of products on this page.
Vinidex Code Size DN (mm x mm) C L
34880 20x15 16.5 45.5
34890 25x15 17.4 51
34900 25x20 21.1 51.5
34920 32x20 23 62.5
34930 32x25 25.3 67
34940 40x15 15.8 58
34950 40x20 23.5 64
34960 40x25 26.9 60
34970 40x32 38.4 71.5
34990 50x20 25 71
35000 50x25 29.3 78.5
35010 50x32 37 82
35020 50x40 42 74.3
35030^ 65x50 51 104
35035* 80x40 41.2 99
35040 80x50 57.6 99
35050 80x65 66.5 120
35060 100x50 57.5 104
35070 100x80 86.6 123
35090 125x100 106 172
35100 150x100 107.5 183
*Fabricated from other moulded fittings
^PN12 Fitting
